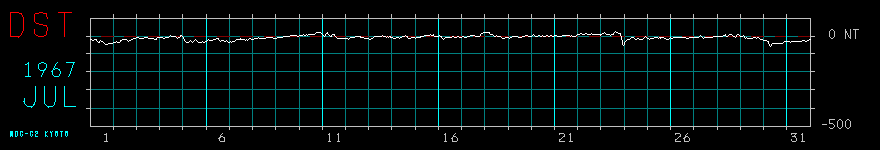

HOURLY VALUES OF EQUATORIAL DST INDEX (FINAL) WDC-C2 FOR GEOMAGNETISM, KYOTO UNIVERSITY
JULY 1967
Unit=nT, Time=number of the hour in UT day
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
DAY
1 -20 -22 -23 -24 -19 -17 -21 -32 -34 -36 -26 -29 -33 -35 -43 -47 -48 -46 -44 -43 -41 -43 -40 -37
2 -36 -35 -33 -35 -38 -36 -30 -27 -23 -21 -20 -19 -21 -21 -25 -28 -27 -25 -21 -18 -16 -15 -15 -10
3 -10 -10 -12 -16 -16 -15 -13 -11 -11 -10 -11 -12 -14 -14 -14 -15 -16 -16 -18 -18 -17 -11 -8 -7
4 -8 -7 -11 -15 -13 -11 -10 -11 -7 -1 1 -1 -4 -3 -5 -3 -6 -12 -11 -7 -2 2 2 -3
5 -11 -20 -30 -38 -38 -35 -30 -26 -30 -37 -30 -24 -22 -23 -29 -36 -36 -34 -35 -33 -34 -37 -32 -28
6 -23 -21 -23 -27 -26 -26 -23 -21 -19 -18 -16 -14 -16 -23 -28 -26 -23 -26 -31 -32 -24 -32 -37 -36
7 -32 -35 -33 -31 -30 -24 -20 -17 -19 -19 -16 -19 -21 -19 -19 -21 -23 -22 -23 -18 -16 -16 -18 -22
8 -20 -16 -15 -16 -13 -11 -12 -13 -13 -12 -15 -15 -12 -9 -8 -8 -6 -8 -9 -10 -10 -12 -14 -13
9 -12 -11 -9 -8 -8 -7 -7 -5 -5 -3 -2 -2 -1 0 2 2 1 2 4 4 2 -2 -2 1
10 2 2 1 2 6 5 4 6 5 7 9 10 11 9 9 11 14 17 18 21 22 20 13 11
11 2 0 5 15 18 10 2 0 -1 -1 9 11 9 -1 -10 -14 -12 -12 -13 -13 -15 -14 -14 -12
12 -13 -14 -17 -16 -8 -7 -6 -8 -9 -5 -4 -4 -5 -4 -5 -6 -6 -9 -11 -14 -16 -13 -12 -13
13 -17 -18 -16 -14 -9 -5 -2 -1 0 0 0 -2 -1 1 -2 -5 -5 -6 -4 -7 -5 -4 -6 -7
14 -11 -13 -16 -13 -8 -8 -10 -12 -9 -7 -5 -3 -1 2 -1 -5 -12 -13 -12 -11 -11 -10 -10 -12
15 -11 -8 -8 -9 -7 -3 -1 0 -1 1 2 2 3 3 5 7 4 4 7 0 -2 -4 -2 -1
16 1 0 -4 -14 -18 -13 -9 -6 -6 -7 -6 -7 -8 -6 -3 -5 -8 -9 -7 -5 -5 -7 -6 -6
17 -4 -4 -7 -9 -6 -3 -1 0 1 3 4 3 1 0 0 -2 -3 0 4 9 13 14 20 22
18 21 21 19 19 17 9 8 10 5 -2 0 4 0 -2 -1 -3 -10 -15 -15 -13 -9 -9 -10 -11
19 -15 -8 -7 -6 -4 -2 -2 -3 -4 -5 -6 -8 -6 -7 -2 -2 -1 2 2 2 0 -4 -4 0
20 3 7 4 0 -1 0 1 2 0 -1 0 1 0 -1 0 4 2 0 -1 1 1 0 0 3
21 4 2 -2 -5 -5 -5 -1 2 3 2 3 2 1 2 1 -1 0 1 -1 -3 -1 -1 2 8
22 9 11 13 13 8 10 11 12 12 11 11 11 11 13 9 8 8 9 6 6 9 9 4 6
23 9 15 16 17 12 11 9 7 6 5 8 9 8 18 23 19 20 14 14 14 -5 -27 -51 -50
24 -32 -23 -20 -20 -18 -14 -12 -10 -10 -11 -14 -18 -17 -14 -16 -17 -19 -20 -19 -15 -8 -4 -9 -12
25 -16 -17 -13 -13 -14 -13 -10 -7 -6 -9 -12 -11 -13 -11 -9 -9 -11 -12 -15 -18 -21 -17 -12 -11
26 -13 -13 -11 -10 -10 -10 -7 -6 -7 -8 -8 -8 -10 -9 -10 -12 -14 -12 -11 -9 -7 -8 -9 -11
27 -11 -11 -10 -11 -9 -5 1 -1 -9 -15 -11 -7 -7 -9 -10 -10 -9 -8 -7 -4 -4 -3 -1 -2
28 -3 -4 -3 0 -5 -3 2 3 6 -2 -5 2 8 9 11 3 -2 -5 -10 -1 6 7 4 0
29 -1 -1 5 -4 -14 -6 -13 -16 -15 -14 -15 -14 -12 -9 -7 -8 -12 -8 -9 -16 -19 -17 -20 -26
30 -27 -26 -26 -29 -32 -49 -58 -52 -42 -41 -42 -40 -41 -40 -42 -42 -42 -42 -43 -41 -37 -33 -31 -30
31 -30 -30 -32 -34 -32 -29 -28 -28 -29 -31 -31 -30 -30 -29 -28 -26 -27 -27 -28 -28 -27 -24 -22 -17
