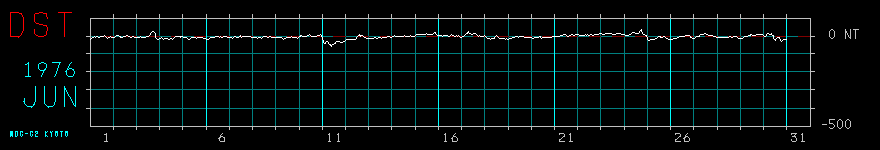

HOURLY VALUES OF EQUATORIAL DST INDEX (FINAL) WDC-C2 FOR GEOMAGNETISM, KYOTO UNIVERSITY
JUNE 1976
Unit=nT, Time=number of the hour in UT day
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
DAY
1 -18 -15 -10 -6 -5 -6 -5 -5 -7 -7 -4 -2 -3 -1 4 -1 -10 -14 -10 -8 -5 -6 -10 -10
2 -8 -3 1 2 1 -1 -4 -8 -8 -7 -3 -2 0 1 3 0 -4 -8 -6 -3 -3 -7 -10 -11
3 -11 -10 -7 -4 -6 -10 -11 -10 -7 -5 -4 -1 5 7 12 22 27 24 22 15 -12 -22 -19 -14
4 -14 -11 -16 -19 -16 -15 -16 -14 -19 -17 -15 -15 -18 -15 -11 -5 -3 -3 0 0 -1 -6 -3 -5
5 -10 -10 -8 -11 -15 -17 -18 -14 -11 -6 -6 -11 -10 -12 -8 -6 -11 -7 -9 -11 -13 -14 -15 -20
6 -19 -17 -14 -11 -11 -11 -11 -10 -6 -5 -4 -1 -5 -6 -5 -6 -6 -4 -3 -4 -4 -6 -8 -10
7 -11 -9 -13 -8 -5 -5 -10 -11 -8 -4 1 -4 -6 -4 -2 -3 -5 -3 0 -1 -4 -4 -11 -11
8 -9 -10 -10 -10 -12 -11 -7 -9 -12 -11 -5 -2 -2 -3 -7 -6 -4 -3 -3 -6 -8 -8 -8 -8
9 -8 -9 -10 -10 -8 -10 -12 -17 -16 -13 -11 -9 -7 -8 -8 -5 -6 -7 -7 -6 -7 -12 -10 -5
10 -1 1 2 0 -4 -4 -2 0 2 3 6 3 -2 -4 -4 -3 -3 0 4 5 5 6 5 -6
11 -26 -40 -41 -32 -28 -38 -45 -48 -53 -57 -46 -46 -44 -39 -31 -30 -31 -32 -35 -35 -34 -32 -28 -26
12 -22 -20 -17 -17 -18 -20 -19 -21 -19 -19 -13 -2 4 7 -1 1 2 2 -1 -6 -9 -12 -16 -16
13 -12 -13 -12 -12 -14 -11 -11 -13 -13 -11 -11 -11 -12 -11 -9 -9 -6 -6 -5 -5 -5 -7 -9 -6
14 -4 0 2 0 -3 -2 -2 -2 -3 -3 -2 -1 1 0 -1 -3 -2 0 1 0 -1 -2 0 4
15 6 7 8 8 7 6 6 7 9 9 10 12 11 9 10 9 8 9 14 20 17 9 3 4
16 1 1 3 -1 1 2 1 2 2 0 -3 2 5 6 4 1 -1 -1 1 0 1 -4 -7 -7
17 -4 -2 4 10 14 16 24 14 15 8 7 16 15 13 10 4 -1 2 -3 -3 -2 -2 0 2
18 -4 -9 -13 -15 -16 -18 -16 -14 -15 -13 -5 3 -2 -7 -15 -16 -15 -16 -14 -15 -17 -16 -18 -17
19 -16 -14 -13 -13 -11 -9 -7 -4 -2 -3 -6 -5 -5 -3 -4 -3 -6 -6 -6 -6 -6 -9 -9 -11
20 -14 -14 -9 -7 -6 -6 -6 -3 -5 -11 -13 -11 -6 -6 -8 -9 -8 -7 -9 -10 -6 -5 -5 -5
21 -4 -5 -3 -2 -1 1 2 3 6 6 6 4 -1 -2 1 3 5 7 6 5 5 9 9 7
22 6 4 3 3 4 4 4 6 5 7 5 5 7 7 5 5 6 8 6 6 9 12 14 15
23 12 8 6 10 14 16 16 12 14 13 13 10 9 8 10 13 14 13 13 14 10 7 7 6
24 2 1 3 3 8 7 11 16 17 17 17 14 14 15 14 19 28 34 22 10 10 4 2 -10
25 -23 -25 -21 -17 -19 -20 -17 -13 -12 -7 -2 -4 -5 -7 -9 -9 -5 -5 -7 -12 -13 -19 -19 -18
26 -17 -17 -16 -14 -13 -12 -11 -6 -4 -2 0 -2 -3 -2 1 3 4 4 2 -4 -11 -11 -13 -12
27 -14 -11 -2 -3 -2 0 8 11 8 11 13 13 6 7 5 1 3 2 1 -1 -1 -5 -8 -9
28 -11 -11 -11 -9 -9 -11 -11 -8 -8 -8 -8 -7 -5 -5 -6 -6 -3 0 -1 -5 -7 -12 -14 -14
29 -12 -12 -8 -4 -3 -2 0 3 2 5 6 7 5 3 1 3 7 11 11 8 8 8 7 4
30 -1 -3 3 14 15 9 9 15 5 4 -19 -25 -14 -7 -9 -9 -17 -21 -28 -26 -19 -22 -18 -17
