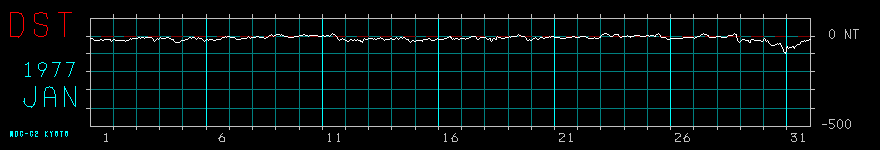

HOURLY VALUES OF EQUATORIAL DST INDEX (FINAL) WDC-C2 FOR GEOMAGNETISM, KYOTO UNIVERSITY
JANUARY 1977
Unit=nT, Time=number of the hour in UT day
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
DAY
1 -14 -15 -16 -20 -25 -27 -24 -23 -23 -23 -19 -19 -23 -23 -22 -20 -17 -18 -20 -18 -18 -28 -25 -19
2 -22 -24 -24 -27 -27 -23 -23 -23 -25 -25 -24 -24 -29 -27 -24 -23 -17 -16 -17 -14 -14 -13 -13 -13
3 -12 -10 -11 -12 -10 -9 -11 -12 -11 -11 -10 -8 -10 -10 -8 -11 -12 -22 -28 -25 -19 -16 -17 -14
4 -11 -12 -13 -12 -12 -14 -9 -11 -11 -12 -15 -19 -19 -22 -30 -35 -36 -34 -34 -34 -32 -30 -27 -26
5 -26 -24 -21 -20 -18 -12 -10 -8 -13 -7 -8 -9 -14 -17 -15 -9 -13 -16 -14 -20 -23 -30 -27 -22
6 -21 -27 -20 -18 -17 -18 -21 -25 -27 -25 -21 -18 -19 -18 -17 -16 -10 -7 -6 -5 -6 -3 -5 -4
7 -7 -10 -10 -10 -10 -14 -20 -22 -22 -19 -19 -17 -15 -14 -14 -14 -16 -13 -10 -5 -9 -13 -11 -9
8 -8 -6 -6 -5 -1 -4 -8 -10 -11 -11 -10 -12 -12 -10 -8 -1 2 4 5 6 3 -1 1 5
9 8 9 7 6 5 6 2 1 0 -2 -3 -3 -10 -11 -10 -10 -9 -11 -2 0 -5 -3 -1 3
10 3 3 2 4 7 7 5 1 1 -2 1 1 3 1 3 4 3 3 2 0 -2 -2 0 1
11 1 -1 -1 1 4 5 0 2 3 10 15 10 6 4 -1 -10 -20 -26 -18 -20 -15 -19 -20 -23
12 -26 -32 -32 -26 -22 -21 -24 -23 -22 -24 -23 -21 -24 -27 -27 -28 -32 -35 -23 -16 -19 -21 -19 -15
13 -13 -14 -12 -15 -18 -16 -17 -18 -16 -14 -12 -11 -13 -15 -18 -23 -22 -18 -17 -18 -17 -15 -16 -14
14 -19 -20 -18 -14 -10 -16 -19 -15 -11 -10 -13 -11 -10 -14 -18 -18 -19 -33 -37 -29 -24 -25 -29 -31
15 -26 -23 -23 -27 -25 -24 -24 -28 -21 -18 -22 -22 -17 -15 -15 -18 -23 -25 -24 -25 -22 -18 -16 -17
16 -17 -20 -20 -19 -19 -16 -14 -16 -11 -8 -5 -4 -6 -11 -17 -16 -18 -15 -14 -16 -18 -17 -14 -15
17 -16 -15 -16 -18 -15 -16 -14 -11 -7 -3 -2 -3 -2 -4 -11 -19 -19 -14 -9 -10 -10 -9 -7 -6
18 -8 -12 -17 -17 -13 -16 -32 -27 -15 -12 -17 -17 -5 -7 -11 -11 -15 -16 -15 -14 -10 -9 -10 -7
19 -5 -9 -9 -2 -2 -2 -5 -5 0 3 6 2 3 -1 -1 0 0 -6 -16 -25 -25 -22 -24 -24
20 -19 -14 -12 -10 -16 -22 -20 -14 -9 -10 -11 -11 -12 -13 -10 -9 -10 -7 -5 -7 -3 -1 -2 -9
21 -10 -8 -6 -7 -10 -12 -14 -13 -12 -14 -13 -11 -8 -7 -6 -6 -7 -7 -5 -4 -4 -6 -7 -8
22 -9 -8 -4 -2 -2 -3 -4 -5 -6 -9 -12 -14 -16 -14 -14 -12 -11 -13 -14 -14 -13 -8 -6 -2
23 4 9 10 13 13 12 7 6 3 0 0 0 1 7 8 7 9 6 -3 -9 -7 -2 -5 -3
24 -3 -3 2 -1 -2 -2 -6 -4 -5 -5 2 3 2 1 2 1 0 -3 -4 -3 -3 -1 1 2
25 1 0 2 3 4 1 0 0 9 10 13 10 4 -3 -7 -6 -9 -9 -9 -12 -19 -20 -19 -16
26 -13 -12 -13 -14 -13 -14 -13 -13 -12 -12 -13 -13 -10 -8 -7 -8 -8 -6 -6 -7 -7 -8 -9 -11
27 -12 -10 -8 -5 -3 0 5 9 10 13 11 8 7 5 1 -6 -7 -9 -10 -10 -9 -7 -5 -5
28 -5 -5 -5 -5 -7 -7 -6 -6 -7 -8 -3 1 4 5 4 3 8 13 8 11 -12 -32 -38 -28
29 -23 -18 -20 -18 -27 -27 -26 -27 -35 -38 -33 -22 -20 -20 -24 -25 -24 -24 -24 -26 -27 -29 -28 -24
30 -15 -18 -30 -27 -32 -39 -47 -54 -54 -52 -51 -49 -46 -41 -45 -44 -44 -49 -53 -62 -76 -89 -95 -88
31 -56 -67 -66 -65 -62 -59 -60 -69 -61 -53 -47 -46 -46 -39 -32 -30 -28 -27 -28 -27 -26 -26 -22 -21
