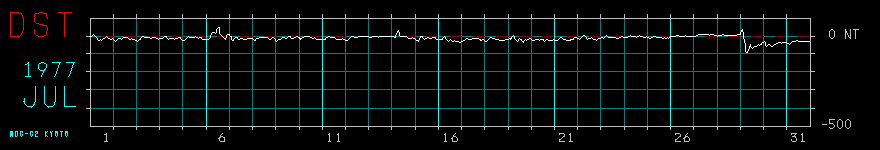

HOURLY VALUES OF EQUATORIAL DST INDEX (FINAL) WDC-C2 FOR GEOMAGNETISM, KYOTO UNIVERSITY
JULY 1977
Unit=nT, Time=number of the hour in UT day
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
DAY
1 -4 0 5 6 5 0 -11 -15 -23 -25 -22 -23 -18 -16 -14 -6 -1 -6 -14 -16 -19 -17 -14 -18
2 -27 -28 -25 -22 -16 -12 -13 -16 -19 -15 -9 -7 -7 -9 -10 -14 -18 -17 -16 -19 -19 -20 -24 -27
3 -28 -27 -22 -17 -10 -5 -1 -6 -8 -9 -11 -7 -6 -12 -15 -15 -11 -9 -9 -10 -13 -14 -17 -15
4 -16 -16 -13 -7 -4 -2 -4 -15 -21 -16 -13 -12 -13 -16 -17 -16 -15 -13 -11 -9 -10 -14 -18 -23
5 -24 -23 -18 -14 -10 -5 -6 -7 -8 -9 -9 -8 -5 -9 -11 -14 -11 -8 -9 -17 -19 -18 -18 -17
6 -18 -17 -15 -10 1 8 18 18 18 14 18 39 49 47 9 1 -5 -10 -13 -20 -6 8 10 8
7 0 -1 -23 -24 -14 -9 -6 -10 -19 -18 -14 -13 -13 -13 -19 -19 -20 -17 -14 -15 -13 -13 -13 -12
8 -20 -23 -27 -15 -13 -15 -11 -9 -8 -8 -9 -7 -6 -6 -11 -15 -20 -21 -19 -14 -10 -11 -14 -21
9 -28 -25 -19 -19 -17 -13 -10 -11 -10 -15 -16 -10 -4 -3 -5 -13 -12 -13 -8 -7 -5 -3 -6 -11
10 -17 -16 -13 -11 -7 -5 -4 -5 -5 -3 -4 -8 -11 -14 -15 -10 -12 -18 -21 -21 -21 -20 -21 -18
11 -18 -20 -19 -9 -7 -4 -3 -8 -8 -7 -8 -8 -11 -16 -21 -19 -18 -18 -17 -17 -15 -18 -21 -23
12 -26 -25 -22 -15 -9 -4 -4 -4 -7 -7 -8 -6 -5 -4 -3 -3 -4 -3 -3 -4 -5 -4 -2 -5
13 -8 -10 -8 -1 -2 -3 -5 -3 -4 -7 -2 -1 -5 -4 -2 -5 -4 -2 -2 -3 -1 0 0 -5
14 -3 -2 -6 -6 7 17 29 20 -1 0 -3 -5 -4 -4 -5 -9 -12 -15 -15 -14 -11 -14 -16 -18
15 -23 -25 -28 -19 -11 -1 -2 -5 -12 -17 -16 -13 -11 -11 -12 -12 -13 -10 -8 -10 -11 -19 -18 -20
16 -22 -21 -20 -17 -9 -3 -10 -18 -26 -28 -25 -18 -20 -26 -28 -30 -27 -28 -29 -31 -32 -35 -34 -32
17 -28 -25 -23 -18 -14 -12 -20 -20 -22 -22 -15 -15 -15 -13 -12 -13 -16 -20 -24 -22 -24 -22 -22 -23
18 -29 -30 -27 -20 -12 -7 -11 -12 -15 -14 -18 -21 -19 -21 -23 -23 -24 -24 -23 -23 -20 -20 -20 -18
19 -15 -16 -17 -13 -5 2 -4 -21 -26 -29 -23 -14 -17 -22 -28 -34 -26 -22 -24 -22 -19 -16 -16 -22
20 -25 -25 -24 -20 -22 -19 -19 -25 -20 -20 -19 -19 -21 -29 -25 -22 -21 -23 -27 -25 -23 -24 -19 -26
21 -25 -26 -25 -20 -14 -10 -10 -14 -18 -20 -22 -25 -26 -26 -24 -24 -22 -18 -18 -18 -11 -9 -11 -14
22 -15 -17 -13 -10 -5 2 2 -2 -11 -17 -14 -13 -13 -11 -12 -17 -19 -21 -23 -20 -16 -15 -15 -14
23 -11 -11 -16 -10 -3 1 -2 -6 -6 -8 -9 -7 -6 -9 -10 -12 -13 -13 -11 -8 -4 -3 -6 -9
24 -11 -7 -6 -5 -2 3 2 0 -1 -2 -4 -5 -6 -2 0 1 -3 -2 -5 -6 -8 -7 -4 -7
25 -9 -13 -12 -9 -6 -4 -2 -4 -6 -8 -7 -6 -7 -10 -11 -13 -12 -11 -13 -14 -11 -12 -6 -4
26 -3 -5 -4 -2 0 1 3 1 -2 0 -2 -2 -2 -3 5 -1 -2 -2 -3 -5 -2 -3 -1 -1
27 -1 -1 1 5 8 10 11 11 9 9 7 7 7 6 7 5 7 7 8 7 5 2 1 0
28 2 1 1 1 1 6 8 5 3 1 1 1 1 1 1 3 5 4 4 4 9 9 8 8
29 23 34 22 -17 -43 -90 -94 -83 -69 -52 -50 -62 -72 -65 -58 -59 -56 -52 -50 -51 -47 -45 -37 -37
30 -30 -38 -57 -55 -45 -47 -53 -56 -57 -54 -50 -46 -43 -39 -38 -37 -37 -38 -39 -38 -38 -38 -38 -37
31 -39 -43 -45 -40 -35 -33 -30 -31 -31 -27 -25 -29 -29 -28 -29 -29 -28 -28 -30 -32 -32 -33 -32 -34
