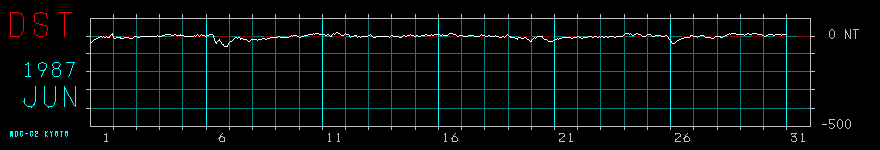

HOURLY VALUES OF EQUATORIAL DST INDEX (FINAL)         WDC-C2 FOR GEOMAGNETISM, KYOTO UNIVERSITY

     JUNE 1987
                                                  Unit=nT, Time=number of the hour in UT day
      1   2   3   4   5   6   7   8    9  10  11  12  13  14  15  16   17  18  19  20  21  22  23  24
DAY
 1  -38 -35 -31 -25 -20 -19 -16 -13  -10  -6  -4  -5  -6  -5  -7  -6   -5  -6  -8  -6   4  10  12  -2
 2  -15 -14 -11  -9 -11 -10 -11 -15  -16 -14 -13 -11 -10 -11 -11 -11  -15 -16 -12 -12  -8  -4  -1  -4
 3   -7  -8  -7  -5  -4  -1  -1  -1   -1  -1  -2  -2  -3  -3  -3  -4   -5  -3  -4  -4   0   1   0  -1
 4   -4  -3   1   1   2   6   9   8    9   9  10   3   1   4   6   7    5   1   1   2   5   8   4   2
 5    2   0  -2  -5  -3  -2  -1   0   -2  -1  -1   1   0   5  10   3   -1   4   7   5   2   1  -1   0

 6    2   5   6   8   9   8   7   2  -14 -28 -41 -31 -26 -18 -28 -36  -45 -47 -57 -60 -60 -56 -46 -36
 7  -31 -28 -24 -19 -15 -10 -10 -12   -9  -7 -15 -20 -16 -15 -19 -22  -22 -21 -25 -29 -31 -27 -21 -18
 8  -19 -20 -21 -22 -23 -21 -20 -18  -17 -16 -15 -15 -18 -17 -15 -12  -12 -11 -11 -10  -9 -11  -9  -8
 9   -8  -6  -5  -5  -7  -7  -8  -8   -8  -7  -8  -9  -6  -3   0   1    0   1   3   3   2  -2  -5  -9
10   -8  -7  -5  -4  -2   1   3   4    5   6   9   7   8  10  14  11   12  13  15  14  11   8   7   7

11    9   8   4   3   6   6   1  -2   -3   0  10  14  11  14  21  22   16  13   9   3   3   5  11  12
12    6   6   7   2  -6  -5  -2   0    1   2   1  -6  -4  -4  -6  -7   -2   0   0  -2  -3  -2  -2   5
13    4   7   3  -3 -11 -10  -7  -4   -5  -5  -4  -4  -3   0  -1  -2   -2  -2  -3  -5  -6  -5  -4   2
14    4  -1  -1  -2  -3  -3  -3  -7   -9  -6   0   1   2   0   0   2    3   4   6   3   2   3  -2  -1
15    2   1  -1  -3  -2   0   4   4    3   3   6   7   4   3   2   5    7   5   4   7   9  10  10   8

16    6   4   5   6   4   5   4   1    2   6  12  13  16  16  14  11    7   6   3  -1   0   3   2   2
17    1   0  -3  -3  -4  -1   1   3    5   5   3   2   0  -2  -1  -1    0   0   1   3   6   3   2   1
18    0  -3  -2   1   2  -2  -1  -2   -4  -1   1  -2  -4  -5  -7  -8   -6  -2  -4  -6  -3   2   7   4
19   -2  -4  -8  -6  -8 -11  -7 -15  -16 -17 -10  -8 -10 -14 -14 -13   -9  -8 -12 -17 -20 -25 -28 -28
20  -22 -15 -11 -12  -9  -3  -3  -4   -5  -2  -1  -5 -12 -19 -20 -21  -25 -28 -30 -32 -30 -28 -25 -24

21  -22 -18 -15 -17 -16 -13 -12 -11  -10  -8  -8  -8 -10 -11 -10 -10  -11 -12 -12 -10  -7  -8  -7  -5
22   -5  -9 -11 -13 -12  -9  -8  -6   -7  -6  -4  -2  -1  -3  -6  -6   -5  -5  -5  -8  -8  -5  -7  -6
23   -4  -5  -6  -6  -4  -5  -7  -7   -3  -3  -3  -3  -5  -8  -6  -5   -4  -3  -2  -1   0  -1   1   8
24   12  13  14  12  11  13  12  10    4   4   8  11  13  12  11  10    9   5   0  -2  -4  -2   3   8
25    8   6   6   3  -1  -3  -2   1    2   2   2   4   4   2  -2  -3   -4  -1   2   1   0 -10 -22 -27

26  -33 -40 -43 -40 -37 -32 -27 -25  -19 -17 -14 -15 -15 -11 -10  -8  -11  -9  -6  -3   1   2   5  -2
27   -3  -2  -2  -7  -3  -1   1   1    2   5  -1  -6  -8  -8 -10  -9  -10 -13 -14 -13  -7  -3   0   0
28   -1  -1  -3  -8  -9  -6  -3  -2    2   5  10  11  12  11  12  14   16  15  13  11  10  11  10  10
29   11   8   6   4   7  10  13  12    9   8  10  11  14  16  14  14   13   8   6   8  10   8   5   2
30   -1   0   2   3   6   6   7   8    6   4   4   6   7   8   8   9    6   6   5   6   8  10   9   9
